Laser Braze Finishing Wheel

Category: T1 Deburring and Finishing Wheels

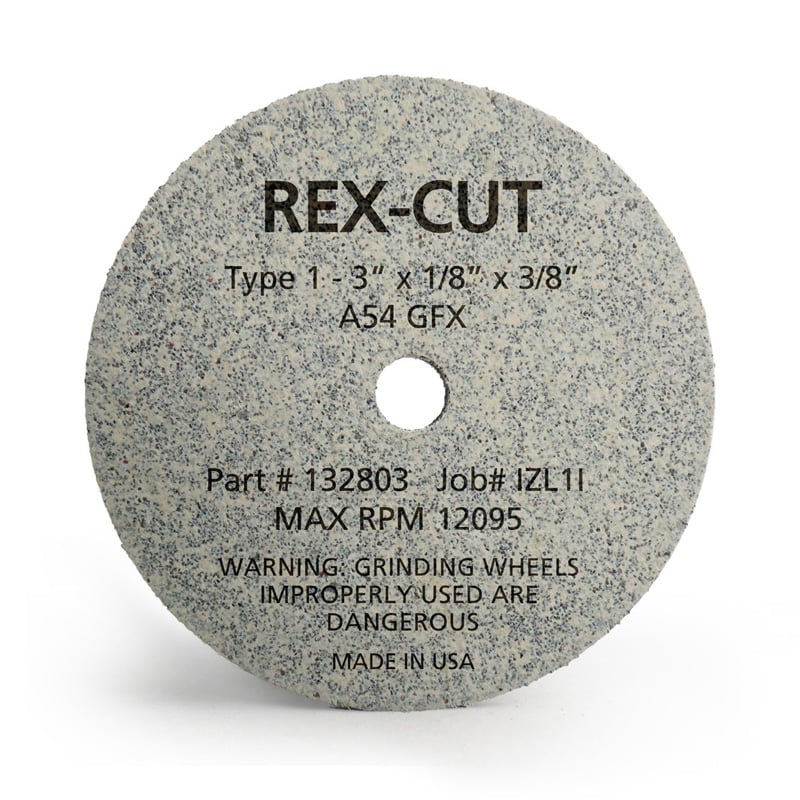

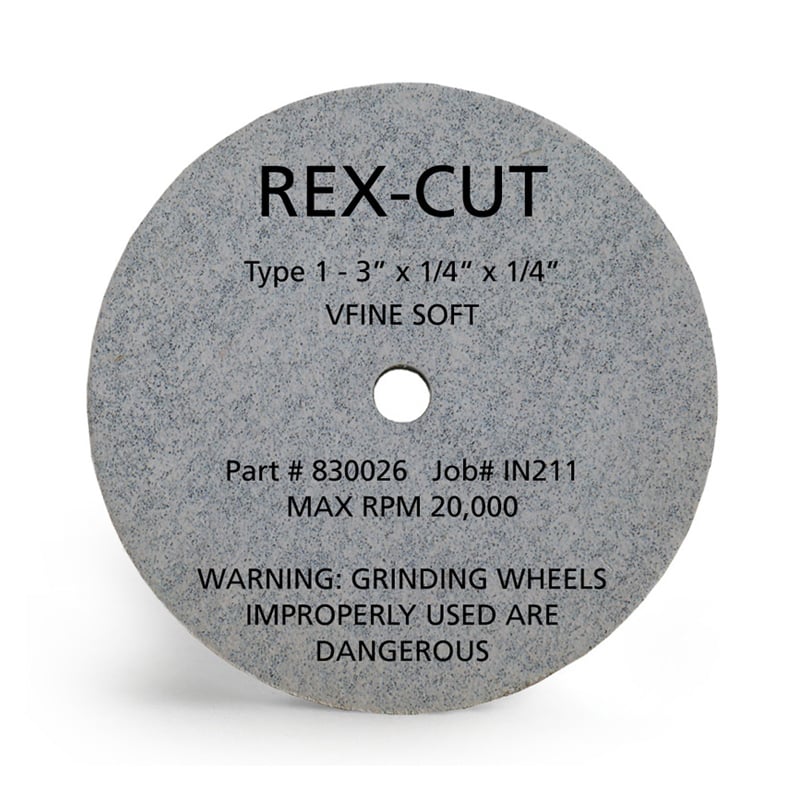

Laser Braze Finishing Wheel

Product Description

Rex-Cut Type 1 Laser Braze Finishing Wheels have been engineered to finish brazing in roof joints for automotive assembly. These Type 1 Cotton Fiber Wheel are manufactured with the tolerances car manufacturers need in this specific application.

Features

Blend and finish braze in one step
Finish braze in half the time as standard Unitized Type 1 wheels
Wheel integrity eliminates side deflection, protecting base metal from scarring
Can be made with guide holes if needed
Can be manufactured to required thicknesses
Suitable for both automated and off-hand use

Applications

Automotive
Blend and finish brazing in assembly plants

Specifications

Grain Size/Bond

Medium Soft

Popular Specifications/Part Numbers

3 x 2.5 mm x 3/8 T1 HS Med Soft - Part # 830130
3 x 1/8 x 3/8 T1 HS Med Soft - Part # 830083
3 x 3 mm x 3/8 T1 HS Med Soft - Part # 830081
3 x 3.5 mm x 3/8 T1 HS Med Soft - Part # 830080
3 x 4 mm x 3/8 T1 HS Med Soft - Part # 830079
4 x 3 mm x 3/8 T1 HS Med Soft - Part # 830120
7 x 2.5 mm x 5/8 T1 Med Soft - Part # 830131
8 x 2.5 x 1 T1 Med Soft - Part # 830093
8 x 3 x 1 T1 Med Soft - Part # 183324
8 x 1/8 x 1 T1 Med Soft - Part # 183321
8 x 3.5 x 1 T1 Med Soft - Part # 830133
8 x 4.2 x 1 T1 Med Soft - Part # 183289

Resources:

File Downloads

Product Data Sheet

SDS Sheet

What Are Cotton Fiber Abrasives - Video

Why Choose Cotton Fiber Abrasives - Video

Product Catalog

Product Specifications Chart

SIZE	SPEC	PART NUMBER	MAX RPM
8 x 4.2mm x 1 - Type 1	Medium Soft	183289	4,535
8 x 1/8 x 1 - Type 1	Medium Soft	183321	4,535
8 x 3mm x 1 - Type 1	Medium Soft	183324	4,535
8 x 3.5mm x 1 - Type 1	Medium Soft	183337	4,535
8 x 2.5mm x 1 - Type 1	Medium Soft	830093	4,535
7 x 2.5mm x 5/8 - Type 1	Medium Soft	830131	5,185
7 x 3mm x 5/8 - Type 1	Medium Soft	830137	5,185
7 x 1/8 x 5/8 - Type 1	Medium Soft	830138	5,185
7 x 3.5mm x 5/8 - Type 1	Medium Soft	830139	5,185
3 x 3.5mm x 3/8 - Type 1	Medium Soft HS	830080	20,000
3 x 3mm x 3/8 - Type 1	Medium Soft HS	830081	20,000
3 x 1/8 x 3/8 - Type 1	Medium Soft HS	830083	20,000
4 x 3mm x 3/8 - Type 1	Medium Soft HS	830120	15,000
4 x 2.5mm x 3/8 - Type 1	Medium Soft HS	830121	15,000
4 x 1/8 x 3/8 - Type 1	Medium Soft HS	830122	15,000
4 x 3.5mm x 3/8 - Type 1	Medium Soft HS	830123	15,000
3 x 2.5mm x 3/8 - Type 1	Medium Soft HS	830130	20,000
