MegaBrite PRISM T27

MegaBrite PRISM Type 27 Unitized Wheels

Overview
MegaBrite PRISM Type 27 unitized wheels provide controlled material removal and consistent finishing on stainless steel and high-nickel alloys. Built for blending, finishing, and polishing, these non-woven wheels deliver smooth, non-gouging performance across a wide range of applications.

Key Benefits
• Consistent finish throughout the life of the wheel
• Runs cool and resists loading for longer life
• Smooth, non-gouging performance on critical surfaces
• Reliable results in demanding fabrication environments

The open, non-woven structure combined with evenly distributed abrasive grain ensures consistent material removal and uniform surface quality from start to finish.

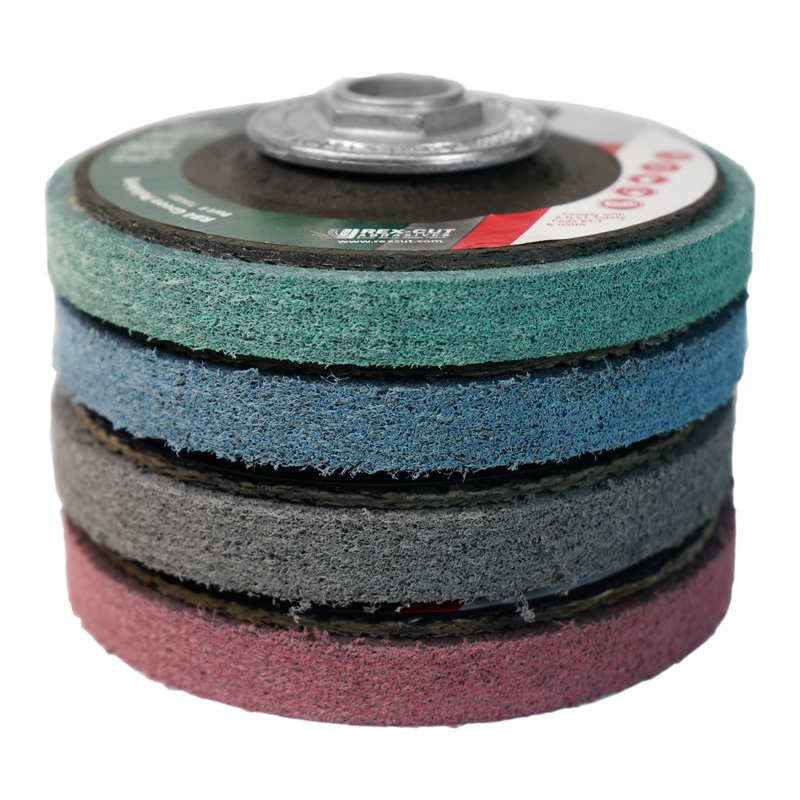

PRISM Color-Coded System
A simple 4-step color-coded system makes it easy to select the right wheel for each stage of your process:
• Red – Material removal
• Grey – Blending
• Blue – Finishing
• Green – Polishing
This system helps eliminate guesswork and simplifies multi-step operations.

Material & Performance
Manufactured with 100% silicon carbide grain, MegaBrite PRISM wheels are optimized for stainless steel and high-nickel alloys. They provide clean, controlled blending and finishing following grinding or flap disc operations where surface quality is critical.

Applications
• Weld cleanup
• Scratch blending
• Surface preparation
• Final finishing and polishing

Results
From weld cleanup to final polish, MegaBrite PRISM Type 27 unitized wheels help:
• Reduce rework
• Improve consistency
• Simplify abrasive selection

Available Sizes & Applications

CODE	DENSITY	GRIT	GRADE	APPLICATION	WHEEL COLOR	DIAMETER	THICKNESS
RB-T27	4	SC	VFN	Polishing	Green	4-1/2” and 5”	1/2
	5	SC	FIN	Polishing	Blue	4-1/2” and 5”	1/2
	6	SC	FIN	Blending	Grey	4-1/2” and 5”	1/2
	7	SC	MED	Removal	Red	4-1/2” and 5”	1/2
